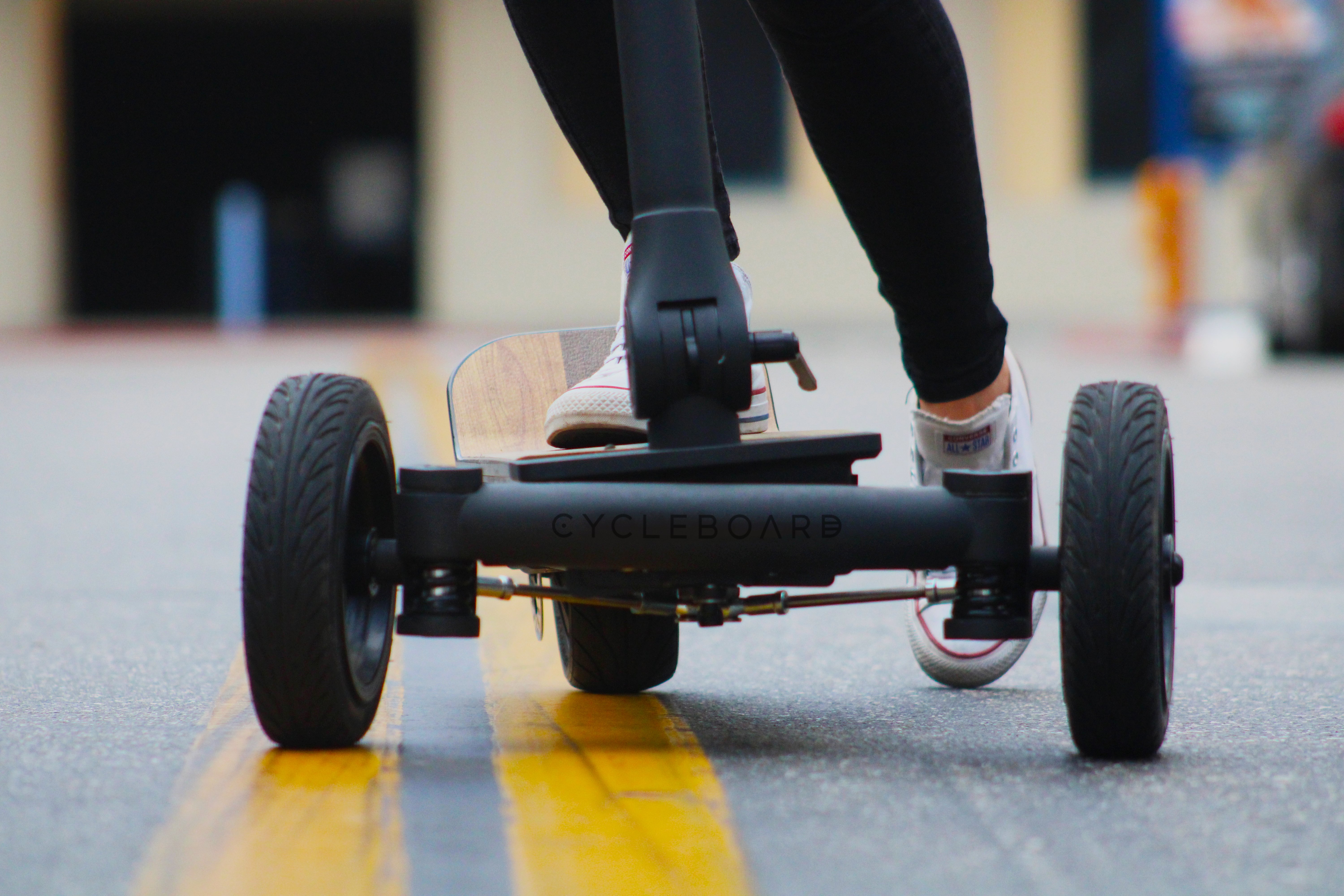

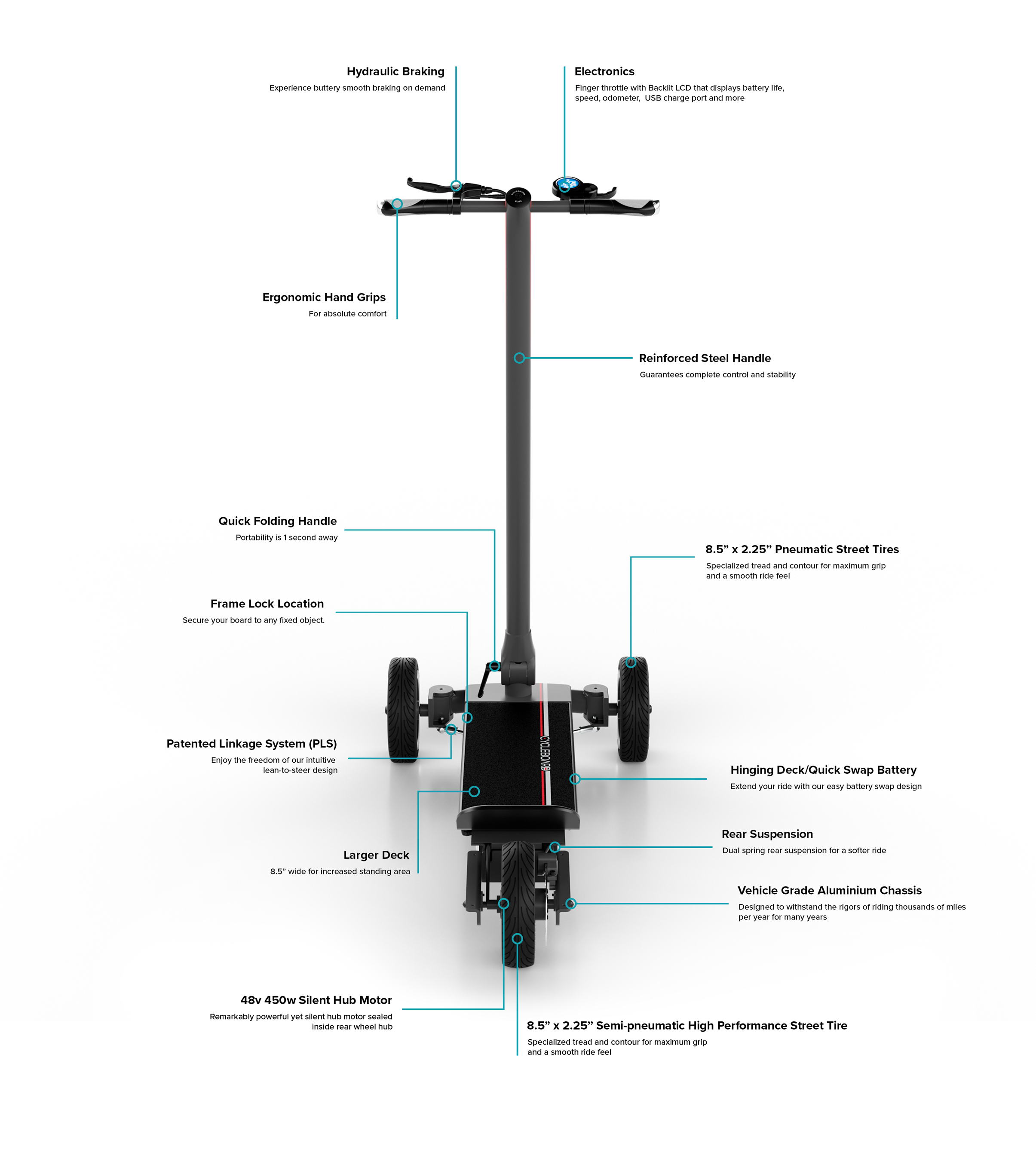

The CycleBoard Elite is our 2nd generation Elite model enhanced with new features like rear suspension for vibration absorption and a smoother ride as well as a hinging deck for battery quick swap. Custom-designed pneumatic street tires offer maximum grip enhancing stability for carving and high speed turns. Elite GEN2 also combines a 450w silent rear hub motor with upgraded hydraulic brakes + Electronic Braking for improved responsiveness and braking control. CycleBoard Elite’s intuitive 3-wheel, lean to steer design with patented linkage system (PLS) provides the ultimate experience in steering and stability putting the rider in complete control and making steering, acceleration and braking a breeze with no experience required.
Range: Travel up to 15 - 20 miles
Top Speed: Exciting top speeds of 22 mph Speed Modes 5 Pre-set speed limits for maximum rider control in any environment.
Hill Climbing: Climb up to a 20% grade with power and ease.
Suspension: Rear suspension absorbs shock and dampens vibration for a smooth and responsive ride on a variety of road conditions.
Tires: Pneumatic front tires with proprietary steel belt design to maintain a flat surface for maximum traction when turning and carving.
Frame: Aircraft grade aluminum chassis with reinforced stainless steel handle: The Elite is built to be ridden thousands of miles for multiple years.
Brakes: Hydraulic disc brake + Electronic Braking for increased braking power and control.
Security: Frame lock location
Range
15 to 20 miles
Hill Climb
Up to 20% Grade
Power
48v 450w Brushless Hub Motor
Suspension
Rear suspension
Throttle
Finger throttle with 5 speed modes
Display
LCD with speed, battery life, odometer
Weight
53 lbs (Includes 48v 9.6ah battery)
Load
200lbs
Recommended Rider Height
5’ – 6’4
Water Proof Rating
IP65
Tail Light
Rear fender with integrated tail light / brake light
Top Speed
22 MPH
Brakes
Hydraulic rear disc brake (180mm) + Electronic Braking
Tires
8.5" x 2.25" pneumatic front tires / 8.5" x 2.25" semi-pneumatic rear tire
Battery Access
Hinging Deck / Quick Swap
Security
Frame lock location
Dimensions
41" (L) x 20" (front wheelbase) x 8.5" deck width
Portable
Quick fold handle

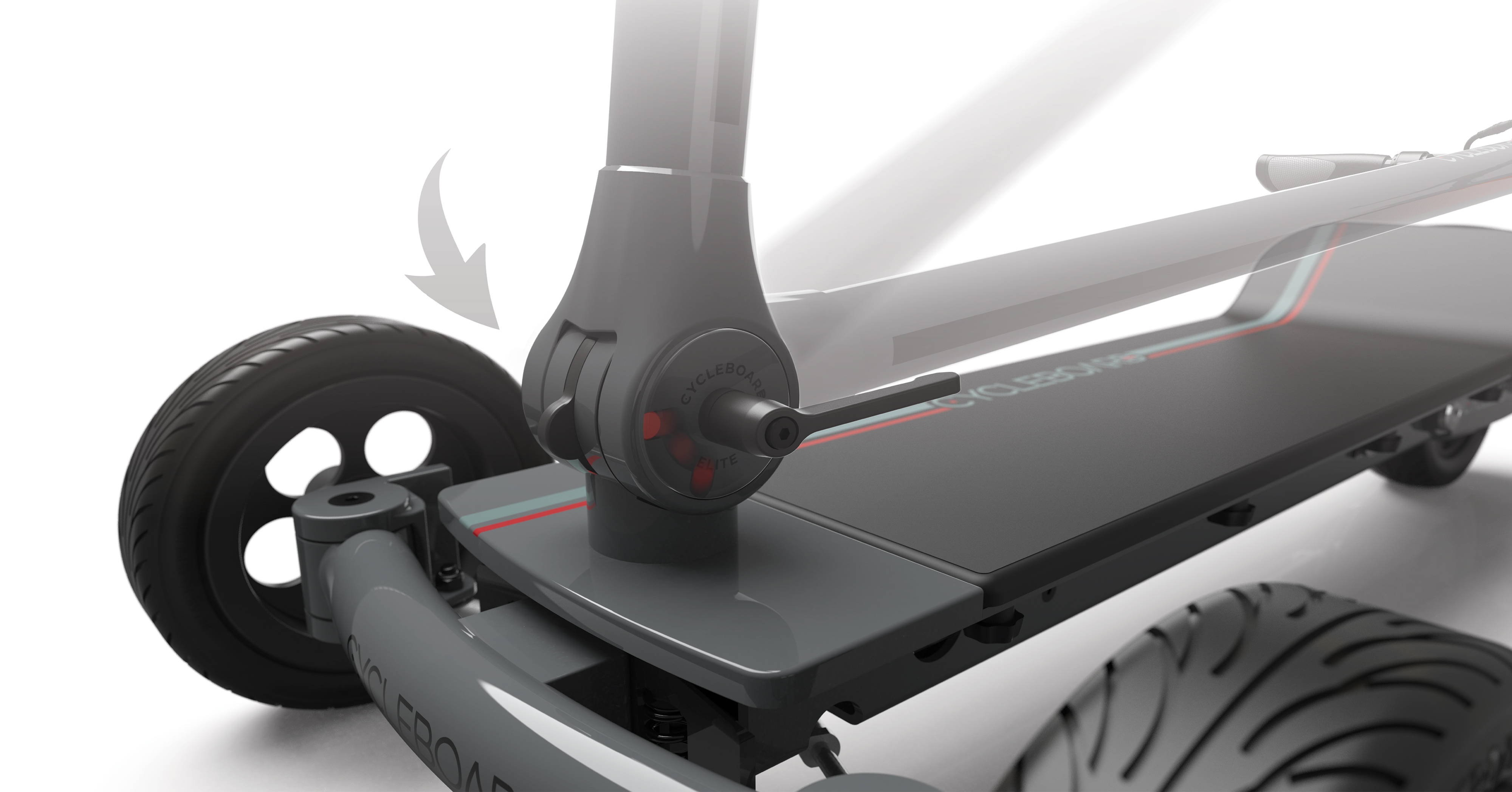

The Elite is our lightest model, with a one step folding handle that makes it easy to fold and throw into your trunk or take it on a train or bus. The Elite model includes rear suspension with hydraulic disc brakes + Electronic braking for a buttery smooth ride and improved responsiveness. Hop on and enjoy CycleBoards intuitive lean-to-steer platform designed to meet the needs of all types of riders, conservative or aggressive - no experience necessary.

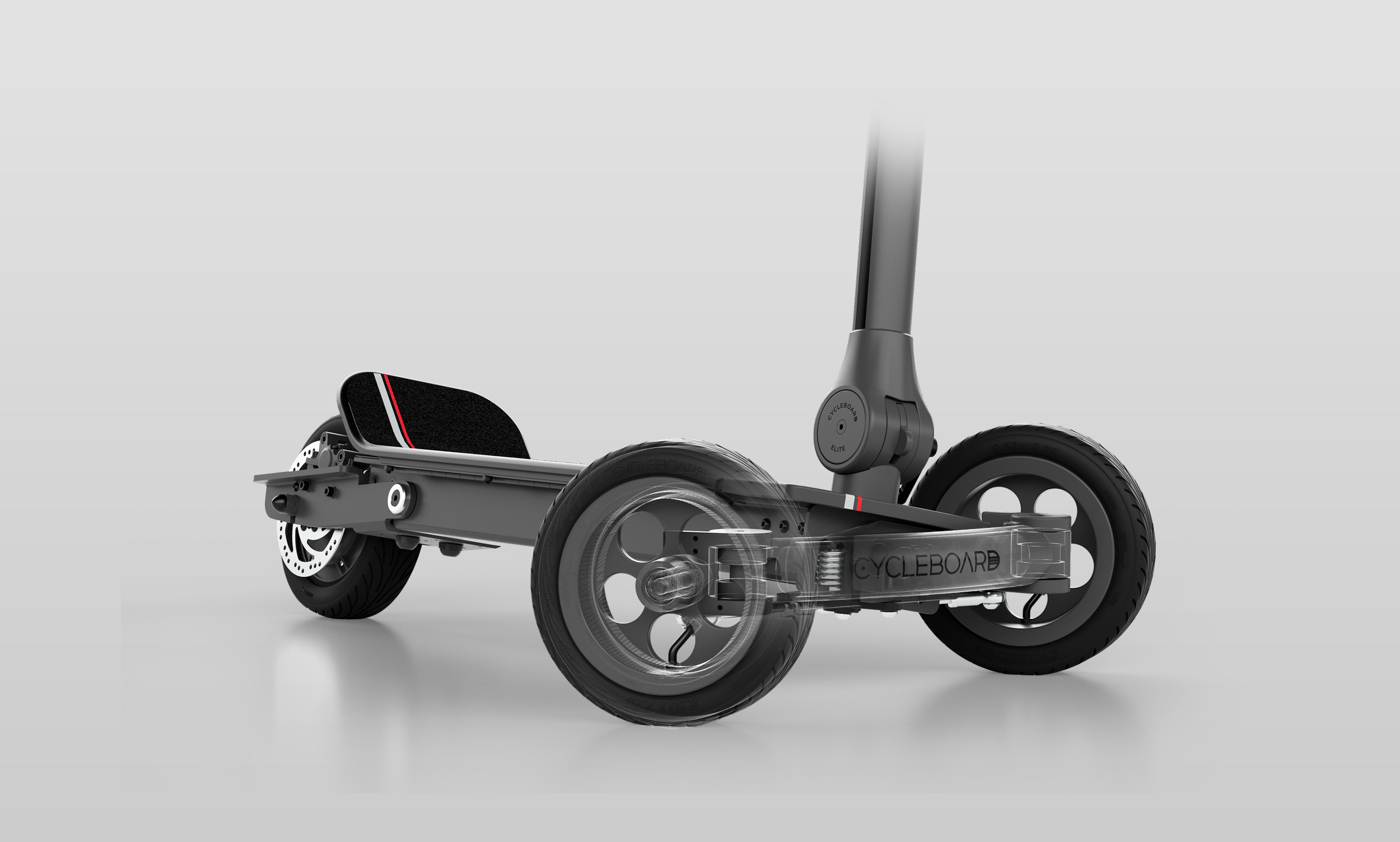

The Cornerstone of every CycleBoard we build is our patented linkage system (PLS) that amplifies the degree of wheel turn to match the gentle lean of the rider. Self-centering suspension supports the rider into the turns putting them in total control and creating a remarkable level of safety and stability.

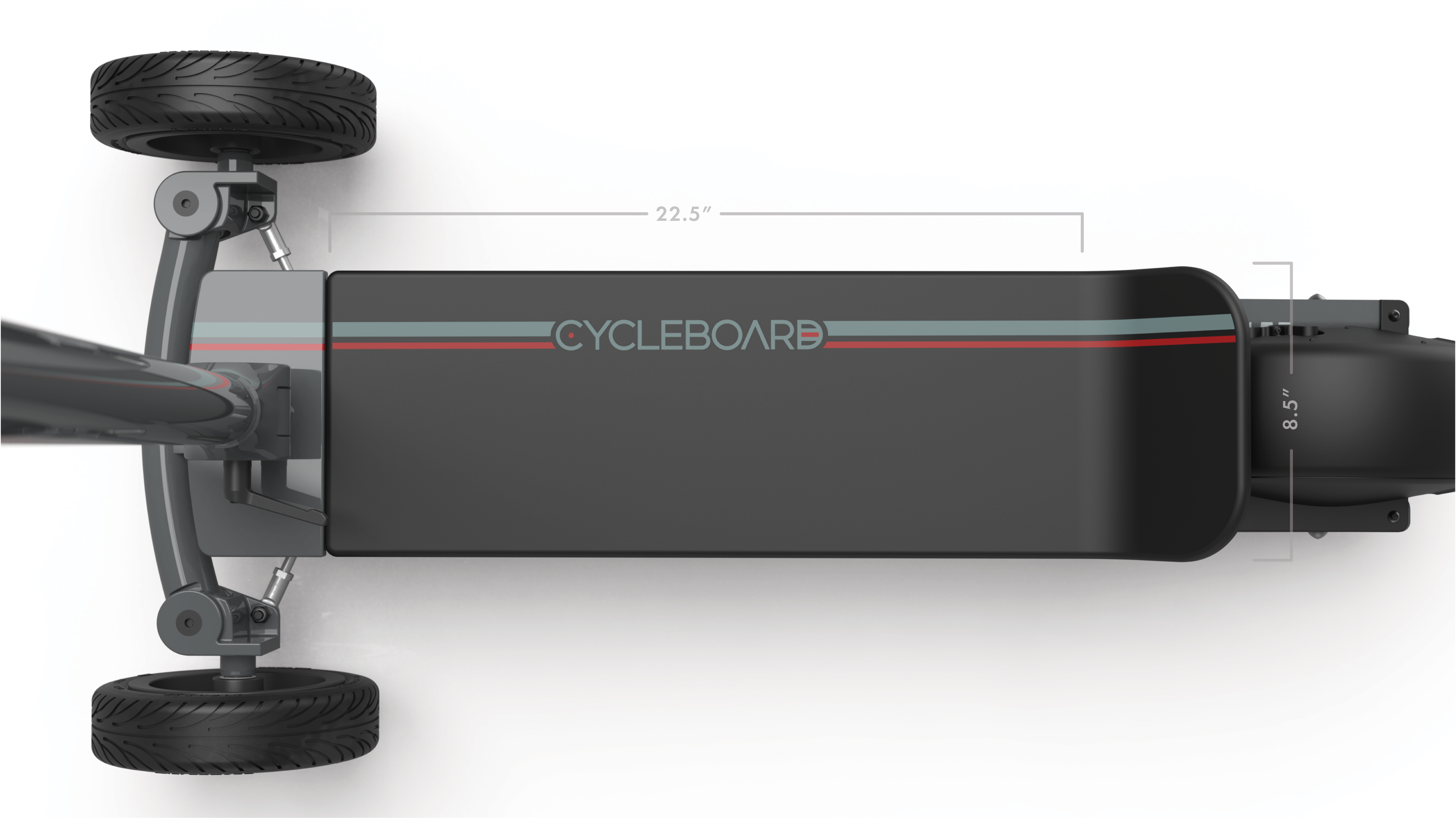

8.5”W x 22.5”L oversize deck provides more standing room for greater comfort and improved control. Non-slip grip tape surface for superior foot traction.

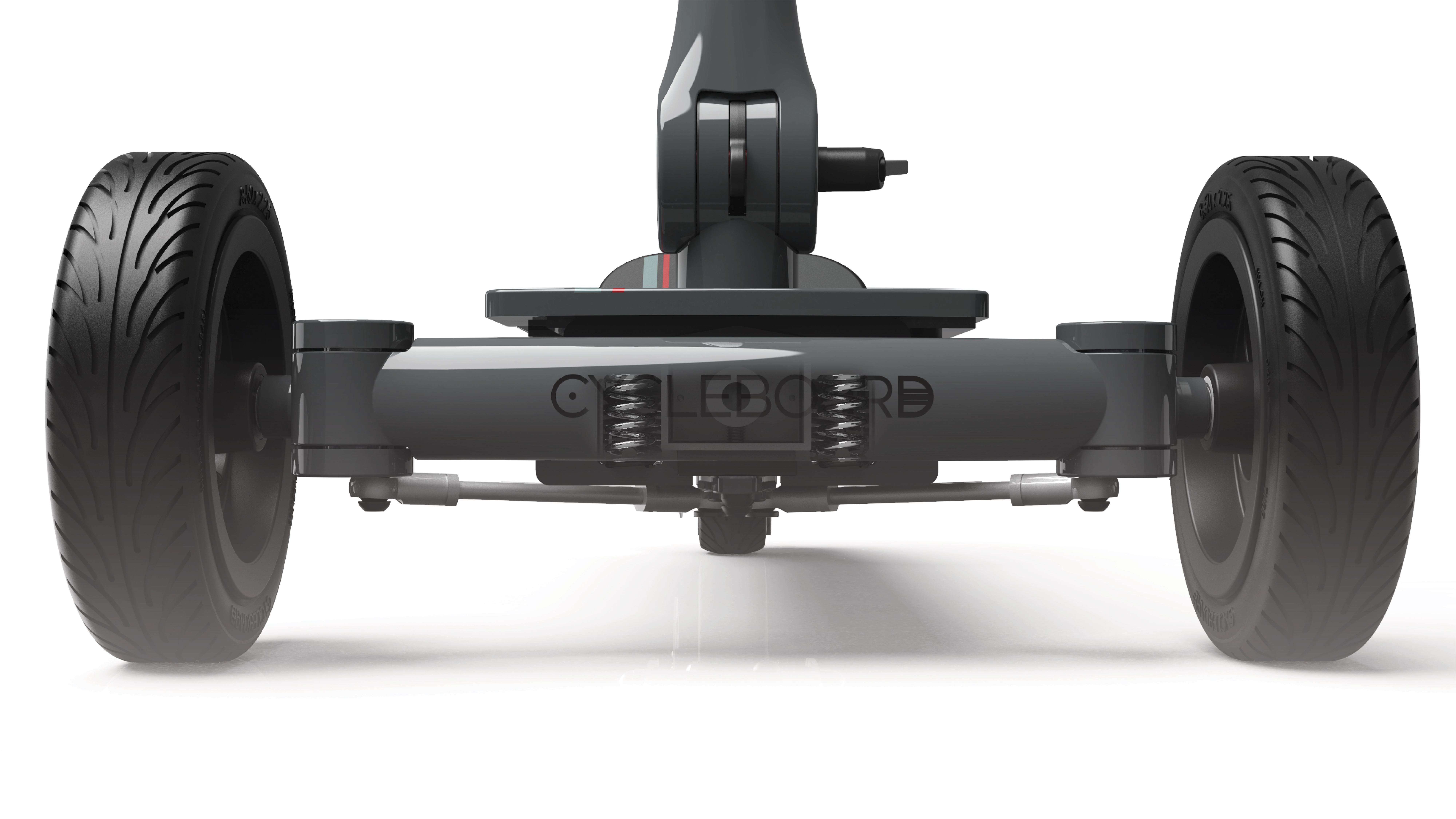

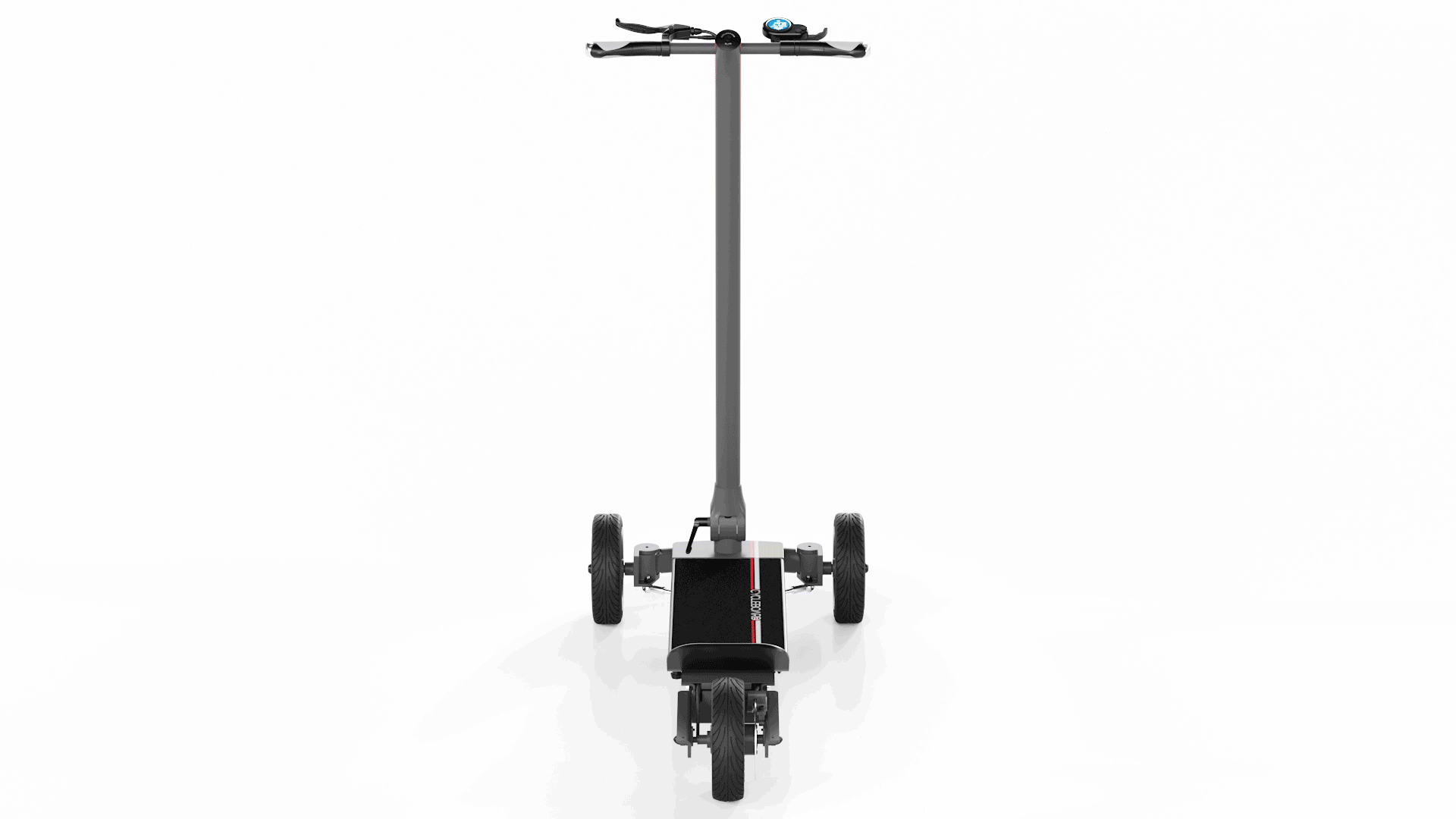

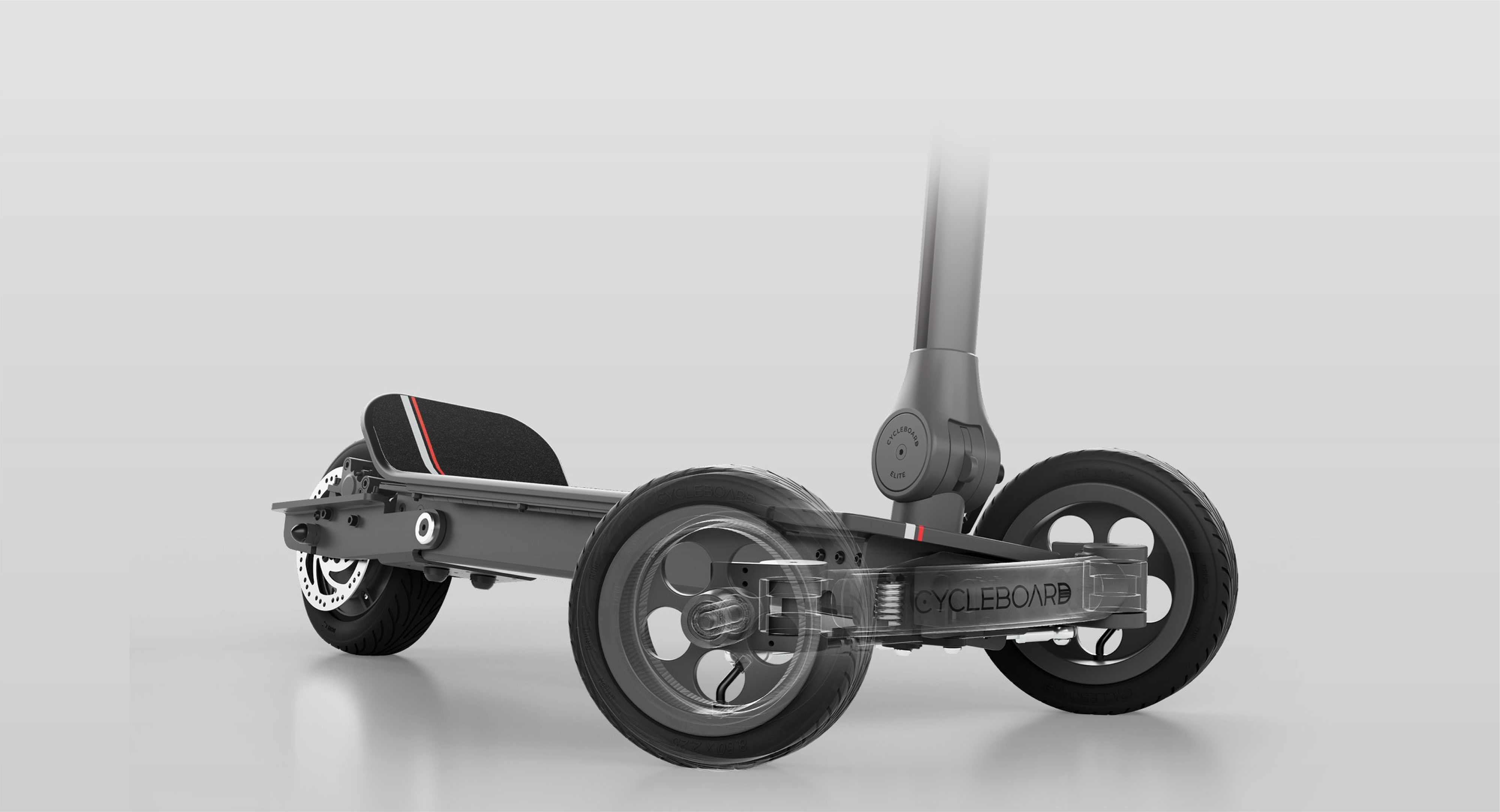

The CycleBoard Elite uses advanced lean-to-steer technology with self-centering suspension springs and our patented linkage system designed to move as you move, as you lean right or left, your CycleBoard will follow, making riding instinctive for new riders and seasoned pros alike.

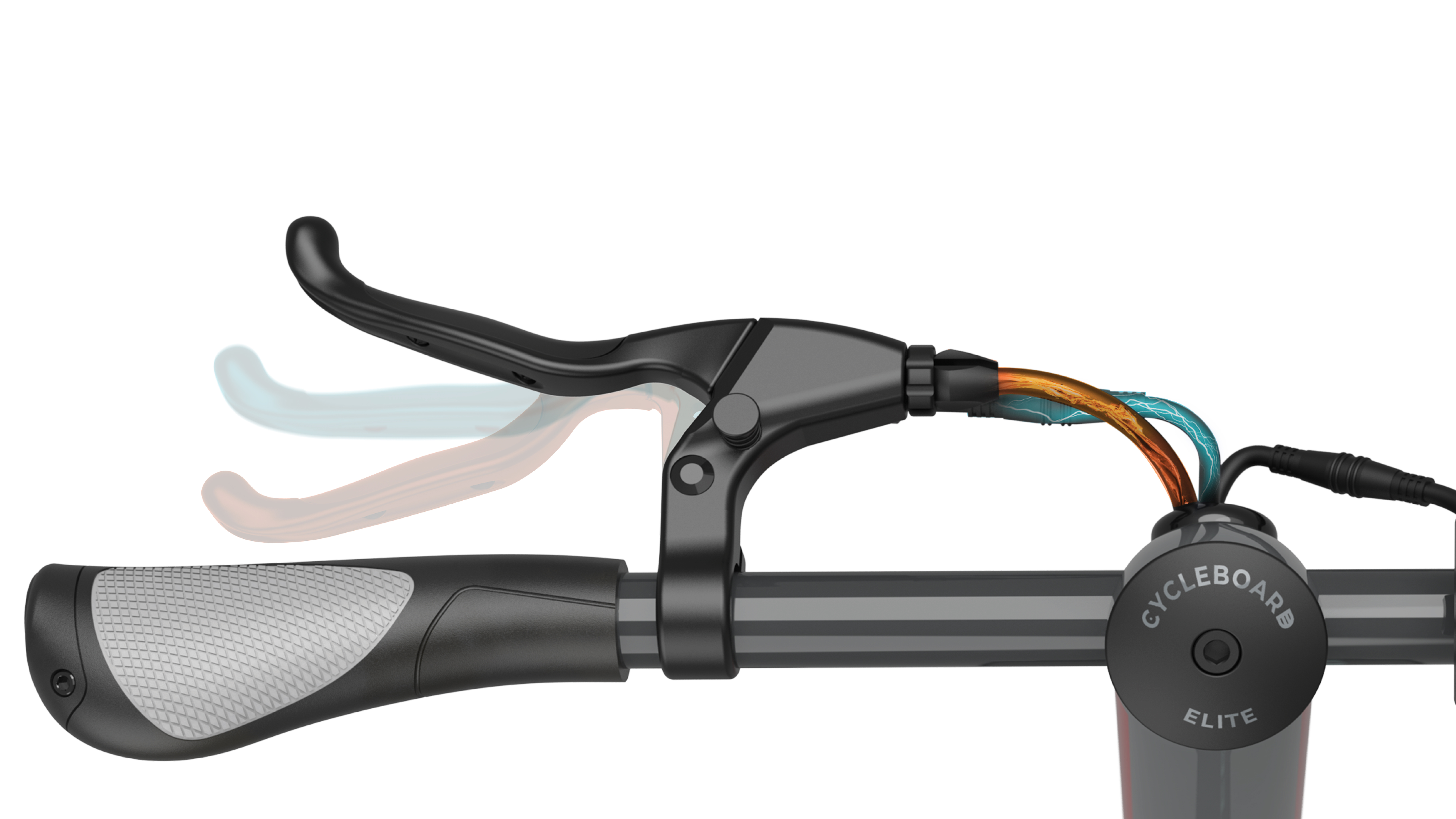

Electronic + Hydraulic braking system slows the motor as you begin to pull the hand brake lever and provides additional stopping power as you continue to pull the lever and engage the hydraulic brake disc

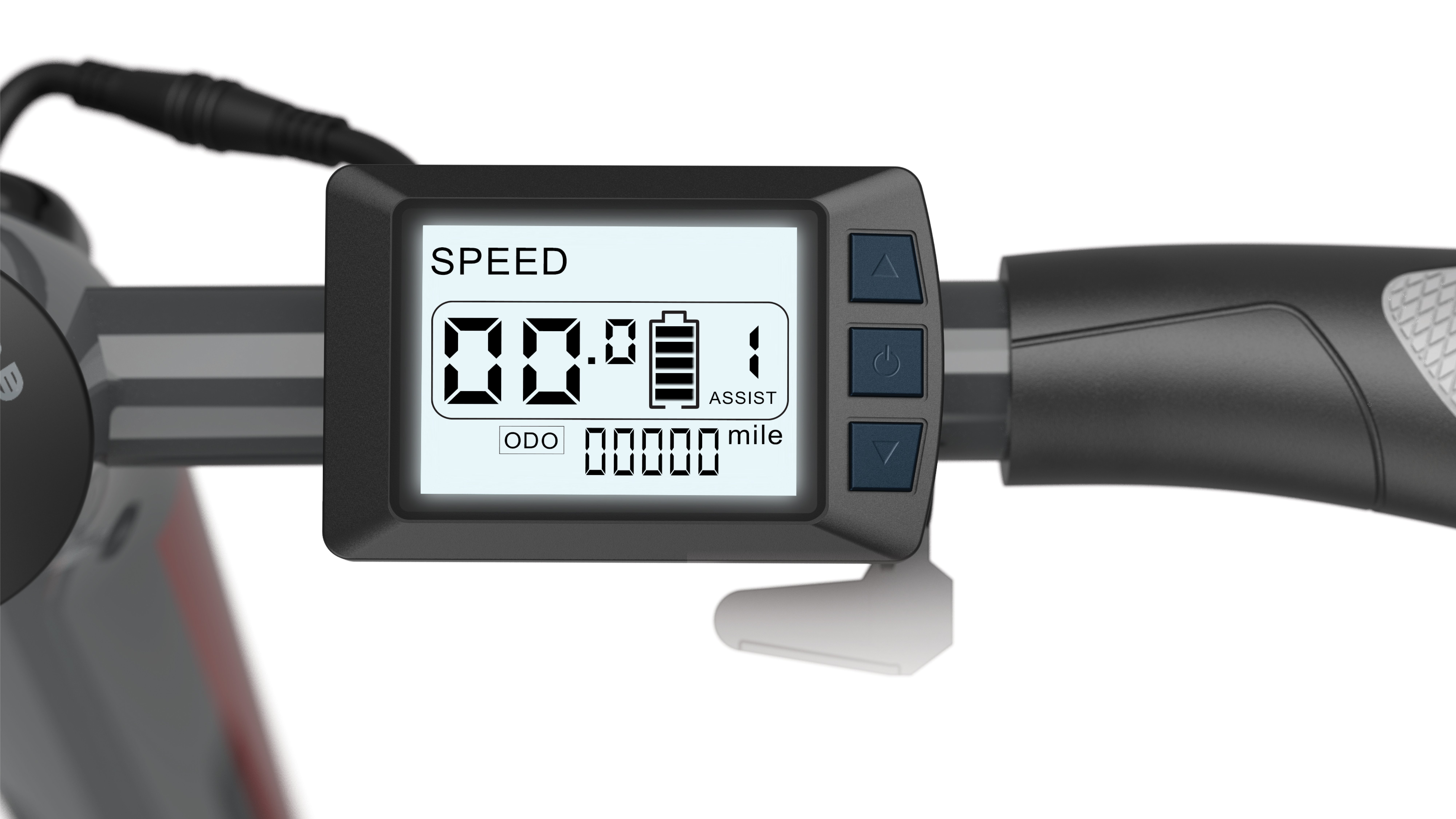

Backlit LCD Display shows speed mode, battery life, speed, odometer and more. Integrated thumb throttle provides smooth acceleration and simple speed management.
The CycleBoard Elite battery pack contains 39 lithium-ion cells for 460Wh of energy and 20 miles per charge. We design and build batteries using genuine LG MH1 and Samsung 35E cells, which are some of the most energy-dense and reliable lithium-ion battery cells on the market. A quick swap battery design lets you charge your battery in or out of the vehicle.
Miles per Charge
To Fully Charge
Total Capacity
The CycleBoard Elite uses a 48v 450w direct-drive brushless hub motor. This is an effective and lightweight near-silent motor that can tackle your average neighborhood hills and reach exciting top speeds. Choose from 1 - 5 speed modes on the handlebar display to manage speed to match your riding environment.
Motor Power
Top Speed
Hill Grade
* Range calculator provided for estimation purposes only, actual range may vary based on other riding conditions. Range calculator assumes selected settings are true for the entire riding time. For example, if you were riding on a 20% uphill grade for the entire time, your range would be significantly reduced.
